Specification of DIN 2527 PN6 Blind Flange | ||||||
Nominal Pipe Size | Flange Dimension | Screw Parameter | Approx. Flange Weight | |||
Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||
DIN | D | b | k | X | d2 | KG/PCS |
10 | 75 | 12 | 50 | 4 | 11 | 0.38 |
15 | 80 | 12 | 55 | 4 | 11 | 0.44 |
20 | 90 | 14 | 65 | 4 | 11 | 0.66 |
25 | 100 | 14 | 75 | 4 | 11 | 0.82 |
32 | 120 | 14 | 90 | 4 | 14 | 1.18 |
40 | 130 | 14 | 100 | 4 | 14 | 1.39 |
50 | 140 | 14 | 110 | 4 | 14 | 1.62 |
65 | 160 | 14 | 130 | 4 | 14 | 2.14 |
80 | 190 | 16 | 150 | 4 | 48 | 3.43 |
100 | 210 | 16 | 170 | 4 | 18 | 4.22 |
125 | 240 | 18 | 200 | 8 | 18 | 6.1 |
150 | 265 | 18 | 225 | 8 | 18 | 7.51 |
175 | 295 | 20 | 255 | 8 | 18 | 10.41 |
200 | 320 | 20 | 280 | 8 | 18 | 12.31 |
250 | 375 | 22 | 335 | 12 | 18 | 18.55 |
300 | 440 | 22 | 395 | 12 | 22 | 25.47 |
350 | 490 | 22 | 445 | 12 | 22 | 31.78 |
400 | 540 | 22 | 495 | 16 | 22 | 38.5 |
500 | 645 | 24 | 600 | 20 | 22 | 60.13 |
600 | 755 | 28 | 705 | 20 | 26 | 96.07 |
700 | 860 | 30 | 810 | 24 | 26 | 133.8 |
800 | 975 | 32 | 920 | 24 | 30 | 183.29 |
900 | 1075 | 36 | 1020 | 24 | 30 | 251.7 |
1000 | 1175 | 42 | 1120 | 28 | 30 | 350.98 |
Specification of DIN 2527 PN10 Blind Flange | ||||||
Nominal Pipe Size | Flange Dimension | Screw Parame
ter |
Approx. Flange Weight | |||
Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||
DIN | D | b | k | X | d2 | KG/PCS |
10 | 90 | 14 | 60 | 4 | 14 | 0.63 |
15 | 95 | 14 | 65 | 4 | 14 | 0.71 |
20 | 105 | 16 | 75 | 4 | 14 | 1.01 |
25 | 115 | 16 | 85 | 4 | 14 | 1.23 |
32 | 140 | 16 | 100 | 4 | 18 | 1.81 |
40 | 150 | 16 | 110 | 4 | 18 | 2.09 |
50 | 165 | 18 | 125 | 4 | 18 | 2.88 |
65 | 185 | 18 | 145 | 4 | 18 | 3.65 |
80 | 200 | 20 | 160 | 4 | 18 | 4.61 |
100 | 220 | 20 | 180 | 4 | 18 | 5.65 |
125 | 250 | 22 | 210 | 8 | 18 | 8.13 |
150 | 285 | 22 | 240 | 8 | 22 | 10.49 |
175 | 315 | 24 | 270 | 8 | 22 | 14.11 |
200 | 340 | 24 | 295 | 8 | 22 | 16.53 |
250 | 395 | 26 | 350 | 12 | 22 | 24.08 |
300 | 445 | 26 | 400 | 12 | 22 | 30.81 |
350 | 505 | 26 | 460 | 12 | 22 | 39.64 |
400 | 565 | 26 | 515 | 16 | 26 | 49.44 |
500 | 670 | 28 | 620 | 20 | 26 | 75.16 |
600 | 780 | 30 | 725 | 20 | 30 | 109.2 |
700 | 895 | 32 | 840 | 24 | 30 | 153.77 |
800 | 1015 | 36 | 950 | 24 | 33 | 222.86 |
900 | 1115 | 40 | 1050 | 24 | 33 | 299.08 |
1000 | 1230 | 46 | 1160 | 28 | 36 | 418.78 |
Dimension and Weight of DIN 2527 PN 25 Blind Flange | ||||||
Nominal Pipe Size | Flange Dimension | Screw Parameter | Approx. Flange Weight | |||
Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||
DIN | D | b | k | X | d2 | KG/PCS |
10 | 90 | 16 | 60 | 4 | 14 | 0.72 |
15 | 95 | 16 | 65 | 4 | 14 | 0.81 |
20 | 105 | 18 | 75 | 4 | 14 | 1.14 |
25 | 115 | 18 | 85 | 4 | 14 | 1.38 |
32 | 140 | 18 | 100 | 4 | 18 | 2.03 |
40 | 150 | 18 | 110 | 4 | 18 | 2.35 |
50 | 165 | 20 | 125 | 4 | 18 | 3.2 |
65 | 185 | 22 | 145 | 4 | 18 | 4.29 |
80 | 200 | 24 | 160 | 8 | 18 | 5.54 |
100 | 235 | 24 | 190 | 8 | 22 | 7.6 |
125 | 270 | 26 | 220 | 8 | 26 | 10.82 |
150 | 300 | 28 | 250 | 8 | 26 | 14.6 |
175 | 330 | 28 | 280 | 8 | 26 | 17.4 |
200 | 360 | 30 | 310 | 12 | 26 | 22.47 |
250 | 425 | 32 | 370 | 12 | 30 | 33.51 |
300 | 485 | 34 | 430 | 12 | 30 | 46.29 |
350 | 555 | 38 | 490 | 16 | 33 | 68.08 |
400 | 620 | 40 | 550 | 16 | 36 | 89.59 |
500 | 730 | 45 | 660 | 20 | 36 | 140.66 |
600 | 845 | 48 | 770 | 20 | 39 | 202.3 |
700 | 960 | 50 | 875 | 24 | 42 | 271.05 |
800 | 1085 | 54 | 990 | 24 | 48 | 373.52 |
900 | 1185 | 58 | 1090 | 28 | 48 | 479.07 |
1000 | 1320 | 62 | 1210 | 28 | 56 | 632.47 |
Dimension and Weight of DIN 2527 PN40 Blind Flange | ||||||
Nominal Pipe Size | Flange Dimension | Screw Parameter | Approx. Flange Weight | |||
Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||
DIN | D | b | k | X | d2 | KG/PCS |
10 | 90 | 16 | 60 | 4 | 14 | 0.72 |
15 | 95 | 16 | 65 | 4 | 14 | 0.81 |
20 | 105 | 18 | 75 | 4 | 14 | 1.14 |
25 | 115 | 18 | 85 | 4 | 14 | 1.38 |
32 | 140 | 18 | 100 | 4 | 18 | 2.03 |
40 | 150 | 18 | 110 | 4 | 18 | 2.35 |
50 | 165 | 20 | 125 | 4 | 18 | 3.2 |
65 | 185 | 22 | 145 | 8 | 18 | 4.29 |
80 | 200 | 24 | 160 | 8 | 18 | 5.54 |
100 | 235 | 24 | 190 | 8 | 22 | 7.6 |
125 | 270 | 26 | 220 | 8 | 26 | 10.82 |
150 | 300 | 28 | 250 | 8 | 26 | 14.6 |
175 | 350 | 32 | 295 | 12 | 30 | 22.04 |
200 | 375 | 34 | 320 | 12 | 30 | 27.21 |
250 | 450 | 38 | 385 | 12 | 33 | 44.38 |
300 | 515 | 42 | 450 | 16 | 33 | 64.17 |
350 | 580 | 46 | 510 | 16 | 36 | 89.52 |
400 | 660 | 50 | 585 | 16 | 39 | 126.76 |
500 | 755 | 56 | 670 | 20 | 42 | 184.63 |
600 | 890 | 62 | 795 | 20 | 48 | 285.17 |
700 | 995 | 64 | 900 | 24 | 48 | 368.83 |
800 | 1140 | 70 | 1030 | 24 | 56 | 528.39 |
900 | 1250 | 76 | 1140 | 28 | 56 | 690.99 |
1000 | 1360 | 84 | 1250 | 28 | 56 | 912.42 |
Dimension and Weight of DIN 2527 PN64 Blind Flange | ||||||
Nominal Pipe Size | Flange Dimension | Screw Parameter | Approx. Flange Weight | |||
Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of holes | Dia of Bolt Holes | ||
DIN | D | b | k | X | d2 | KG/PCS |
10 | 20 | 70 | 40 | 4 | 14 | 1.04 |
15 | 20 | 75 | 45 | 4 | 14 | 1.16 |
20 | 24 | 100 | 68 | 4 | 18 | 2.54 |
25 | 24 | 110 | 78 | 4 | 22 | 3.07 |
32 | 26 | 125 | 88 | 4 | 22 | 3.97 |
40 | 26 | 135 | 102 | 4 | 22 | 4.51 |
50 | 26 | 160 | 122 | 4 | 22 | 5.69 |
65 | 28 | 170 | 138 | 8 | 22 | 6.88 |
80 | 30 | 200 | 162 | 8 | 26 | 9.99 |
100 | 34 | 240 | 188 | 8 | 30 | 15.91 |
125 | 36 | 280 | 218 | 8 | 33 | 23.32 |
150 | 40 | 310 | 260 | 8 | 33 | 30.35 |
175 | 42 | 345 | 285 | 12 | 36 | 39.17 |
200 | 46 | 400 | 345 | 12 | 38 | 56.64 |
250 | 52 | 460 | 410 | 12 | 36 | 81.14 |
300 | 56 | 525 | 465 | 16 | 39 | 112.95 |
350 | 60 | 585 | 535 | 16 | 42 | 152.3 |

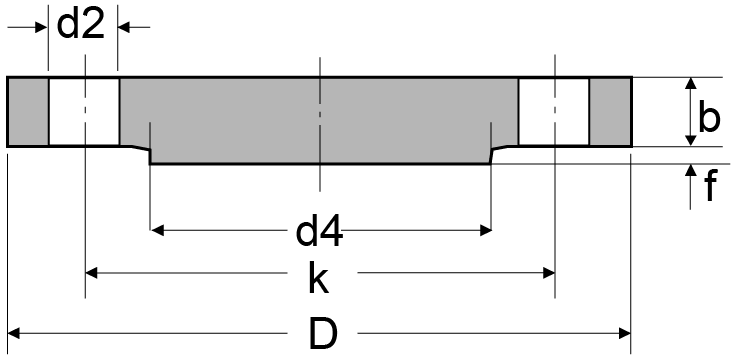

Dimension and Weight of DIN 2527 PN100 Blind Flange | ||||||||
Nominal Pipe Size | Flange Dimension | Raised Face Size | Screw Parameter | Approx. Flange Weight | ||||
Flanges Dia | Dia of Bolt Circle | Thk of Flange | Dia of R/F | Thk of R/F | No. of holes | Dia of Bolt Holes | ||
DN | D | k | b | d4 | f | HN | d2 | KG/PCS |
10 | 100 | 70 | 20 | 40 | 2 | 4 | 14 | 1.04 |
15 | 105 | 75 | 20 | 45 | 2 | 4 | 14 | 1.16 |
25 | 140 | 100 | 24 | 68 | 2 | 4 | 18 | 2.54 |
32 | 155 | 110 | 24 | 78 | 2 | 4 | 22 | 3.07 |
40 | 170 | 125 | 26 | 88 | 3 | 4 | 22 | 3.97 |
50 | 195 | 145 | 28 | 102 | 3 | 4 | 26 | 5.64 |
65 | 220 | 170 | 30 | 122 | 3 | 8 | 26 | 7.43 |
80 | 230 | 180 | 32 | 138 | 3 | 8 | 26 | 8.84 |
100 | 265 | 210 | 36 | 162 | 3 | 8 | 30 | 13.31 |
125 | 315 | 250 | 40 | 188 | 3 | 8 | 33 | 21.3 |
150 | 355 | 290 | 44 | 218 | 3 | 12 | 33 | 29.43 |
175 | 385 | 320 | 48 | 260 | 3 | 12 | 33 | 38.75 |
200 | 430 | 360 | 52 | 285 | 3 | 12 | 36 | 52.66 |
250 | 505 | 430 | 60 | 345 | 3 | 12 | 39 | 85.41 |
300 | 585 | 500 | 68 | 410 | 4 | 16 | 42 | 128.05 |
350 | 655 | 560 | 74 | 465 | 4 | 16 | 48 | 174.53 |
