Threaded Flanges are used for special circumstances with their main advantage being that they can be attached to the pipe without welding. Sometimes a seal weld is also used in conjunction with the threaded connection. Although still available in most sizes and pressure ratings, screwed fittings today are used almost exclusively in smaller pipe sizes.
ASME B16.5 Threaded Flange Class 150LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 89 | 19.85 | 15.7 | 4 | 11.2 | 15.7 | 30.2 | 35.1 | 0.41 |
3/4″ | 99 | 25.25 | 15.7 | 4 | 12.7 | 15.7 | 38.1 | 42.9 | 0.59 |
1″ | 108 | 31.63 | 15.7 | 4 | 14.2 | 17.5 | 49.3 | 50.8 | 0.8 |
1-1/4″ | 117 | 40.43 | 15.7 | 4 | 15.7 | 20.6 | 58.7 | 63.5 | 1.04 |
1-1/2″ | 127 | 46.53 | 15.7 | 4 | 17.5 | 22.4 | 65 | 73.2 | 1.37 |
2″ | 152 | 58.53 | 19.1 | 4 | 19.1 | 25.4 | 77.7 | 91.9 | 2.12 |
2-1/2″ | 178 | 70.46 | 19.1 | 4 | 22.4 | 28.4 | 90.4 | 104.6 | 3.42 |
3″ | 191 | 86.36 | 19.1 | 4 | 23.9 | 30.2 | 108 | 127 | 4.04 |
3-1/2″ | 216 | 99.06 | 19.1 | 8 | 23.9 | 31.8 | 122.2 | 139.7 | 5.01 |
4″ | 229 | 111.76 | 19.1 | 8 | 23.9 | 33.3 | 134.9 | 157.2 | 5.54 |
5″ | 254 | 138.76 | 22.4 | 8 | 23.9 | 36.6 | 163.6 | 185.7 | 6.41 |
6″ | 279 | 165.76 | 22.4 | 8 | 25.4 | 39.6 | 192 | 215.9 | 7.81 |
8″ | 343 | 216.56 | 22.4 | 8 | 28.4 | 44.5 | 246.1 | 269.7 | 12.64 |
10″ | 406 | 270.46 | 25.4 | 12 | 30.2 | 49.3 | 304.8 | 323.9 | 17.44 |
12″ | 483 | 321.26 | 25.4 | 12 | 31.8 | 55.6 | 365.3 | 381 | 27.63 |
14″ | 533 | 353.06 | 28.4 | 12 | 35.1 | 57.2 | 400.1 | 412.8 | 36.21 |
16″ | 597 | 403.86 | 28.4 | 16 | 36.6 | 63.5 | 457.2 | 469.9 | 47.11 |
18″ | 635 | 454.66 | 31.8 | 16 | 39.6 | 68.3 | 505 | 533.4 | 51.56 |
20″ | 699 | 505.46 | 31.8 | 20 | 42.9 | 73.2 | 558.8 | 584.2 | 65.66 |
24″ | 813 | 607.06 | 35.1 | 20 | 47.8 | 82.6 | 663.4 | 692.2 | 92.73 |
ASME B16.5 Threaded Flange Class 300LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 95 | 19.85 | 15.7 | 4 | 14.2 | 22.4 | 38.1 | 35.1 | 0.66 |
3/4″ | 117 | 25.25 | 19.1 | 4 | 15.7 | 25.4 | 47.8 | 42.9 | 1.12 |
1″ | 124 | 31.63 | 19.1 | 4 | 17.5 | 26.9 | 53.8 | 50.8 | 1.39 |
1-1/4″ | 133 | 40.43 | 19.1 | 4 | 19.1 | 26.9 | 63.5 | 63.5 | 1.71 |
1-1/2″ | 155 | 46.53 | 22.4 | 4 | 20.6 | 30.2 | 69.9 | 73.2 | 2.52 |
2″ | 165 | 58.53 | 19.1 | 8 | 22.1 | 33.3 | 84.1 | 91.9 | 2.94 |
2-1/2″ | 191 | 70.46 | 22.4 | 8 | 25.4 | 38.1 | 100.1 | 104.6 | 4.49 |
3″ | 210 | 86.36 | 22.4 | 8 | 28.4 | 42.9 | 117.3 | 127 | 6.04 |
3-1/2″ | 229 | 99.06 | 22.4 | 8 | 30.2 | 44.5 | 133.4 | 139.7 | 7.61 |
4″ | 254 | 111.76 | 22.4 | 8 | 31.8 | 47.8 | 146.1 | 157.2 | 9.93 |
5″ | 279 | 138.76 | 22.4 | 8 | 35.1 | 50.8 | 177.8 | 185.7 | 12.62 |
6″ | 318 | 165.76 | 22.4 | 12 | 36.6 | 52.6 | 206.2 | 215.9 | 16.27 |
8″ | 381 | 216.56 | 25.4 | 12 | 41.1 | 62 | 260.4 | 269.7 | 24.99 |
10″ | 445 | 270.46 | 28.4 | 16 | 47.8 | 66.5 | 320.5 | 323.9 | 35.62 |
12″ | 521 | 321.26 | 31.8 | 16 | 50.8 | 73.2 | 374.7 | 381 | 51.67 |
14″ | 584 | 353.06 | 31.8 | 20 | 53.8 | 76.2 | 425.5 | 412.8 | 71.38 |
16″ | 648 | 403.86 | 35.1 | 20 | 57.2 | 82.6 | 482.6 | 469.9 | 91.08 |
18″ | 711 | 454.66 | 35.1 | 24 | 60.5 | 88.9 | 533.4 | 533.4 | 112.16 |
20″ | 775 | 505.46 | 35.1 | 24 | 63.5 | 95.3 | 587.2 | 584.2 | 138.79 |
24″ | 914 | 607.06 | 41.1 | 24 | 69.9 | 106.4 | 701.5 | 692.2 | 208.43 |

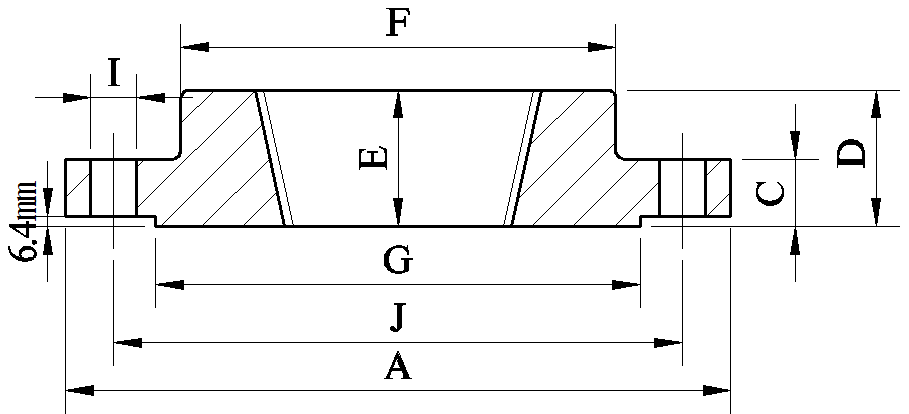

ASME B16.5 Threaded Flange Class 400LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 95 | 19.85 | 16 | 4 | 14.2 | 22.4 | 38.1 | 34.9 | 0.75 |
3/4″ | 117 | 25.25 | 19 | 4 | 15.7 | 25.4 | 47.8 | 42.9 | 1.27 |
1″ | 124 | 31.63 | 19 | 4 | 17.5 | 26.9 | 53.8 | 50.8 | 1.57 |
1-1/4″ | 133 | 40.43 | 19 | 4 | 20.6 | 28.4 | 63.5 | 63.5 | 2.06 |
1-1/2″ | 155 | 46.53 | 22 | 4 | 22.4 | 31.8 | 69.9 | 73 | 3.03 |
2″ | 165 | 58.53 | 19 | 8 | 25.4 | 36.8 | 84.1 | 92.1 | 3.73 |
2-1/2″ | 191 | 70.46 | 22 | 8 | 28.4 | 41.1 | 100.1 | 104.8 | 5.47 |
3″ | 210 | 86.36 | 22 | 8 | 31.8 | 46 | 117.3 | 127 | 7.32 |
3-1/2″ | 229 | 99.06 | 25 | 8 | 35.1 | 49.3 | 133.4 | 139.7 | 9.22 |
4″ | 254 | 111.76 | 25 | 8 | 35.1 | 50.8 | 146.1 | 157.2 | 11.51 |
5″ | 279 | 138.76 | 25 | 8 | 38.1 | 53.8 | 177.8 | 185.7 | 14.38 |
6″ | 318 | 165.76 | 25 | 12 | 41.1 | 57.2 | 206.2 | 215.9 | 19 |
8″ | 381 | 216.56 | 29 | 12 | 47.8 | 68.3 | 260.4 | 269.9 | 29.64 |
10″ | 445 | 270.46 | 32 | 16 | 55.8 | 73.2 | 320.5 | 323.8 | 41.74 |
12″ | 521 | 321.26 | 35 | 16 | 57.2 | 79.2 | 374.7 | 381 | 59.1 |
14″ | 584 | 353.06 | 35 | 20 | 60.5 | 84.1 | 425.5 | 412.8 | 81.58 |
16″ | 648 | 403.86 | 39 | 20 | 63.5 | 93.7 | 482.6 | 469.9 | 103.88 |
18″ | 710 | 454.66 | 39 | 24 | 66.5 | 98 | 533.4 | 533.4 | 125.12 |
20″ | 775 | 505.46 | 42 | 24 | 69.9 | 101.6 | 587.2 | 584.2 | 151.31 |
24″ | 914 | 607.06 | 48 | 24 | 76.2 | 114.3 | 701.5 | 692.2 | 226.72 |
ASME B16.5 Threaded Flange Class 600LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 95 | 19.85 | 15.7 | 4 | 14.2 | 22.4 | 38.1 | 35.1 | 0.76 |
3/4″ | 117 | 25.25 | 19.1 | 4 | 15.7 | 25.4 | 47.8 | 42.9 | 1.27 |
1″ | 124 | 31.63 | 19.1 | 4 | 17.5 | 26.9 | 53.8 | 50.8 | 1.57 |
1-1/4″ | 133 | 40.43 | 19.1 | 4 | 20.6 | 28.4 | 63.5 | 63.5 | 2.06 |
1-1/2″ | 155 | 46.53 | 22.4 | 4 | 22.4 | 31.8 | 69.9 | 73.2 | 3.02 |
2″ | 165 | 58.53 | 19.1 | 8 | 25.4 | 36.6 | 84.1 | 91.9 | 3.72 |
2-1/2″ | 191 | 70.46 | 22.4 | 8 | 28.4 | 41.1 | 100.1 | 104.6 | 5.45 |
3″ | 210 | 86.36 | 22.4 | 8 | 31.8 | 46 | 117.3 | 127 | 7.29 |
3-1/2″ | 229 | 99.06 | 25.4 | 8 | 35.1 | 49.3 | 133.4 | 139.7 | 9.19 |
4″ | 273 | 111.76 | 25.4 | 8 | 38.1 | 53.8 | 152.4 | 157.2 | 14.88 |
5″ | 330 | 138.76 | 28.4 | 8 | 44.5 | 60.5 | 189 | 185.7 | 25.05 |
6″ | 356 | 165.76 | 28.4 | 12 | 47.8 | 66.5 | 222.3 | 215.9 | 29.68 |
8″ | 419 | 216.56 | 31.8 | 12 | 55.6 | 76.2 | 273.1 | 269.7 | 44.47 |
10″ | 508 | 270.46 | 35.1 | 16 | 63.5 | 85.9 | 342.9 | 323.9 | 72.06 |
12″ | 559 | 321.26 | 35.1 | 20 | 66.5 | 91.9 | 400.1 | 381 | 86.25 |
14″ | 603 | 353.06 | 38.1 | 20 | 69.9 | 93.7 | 431.8 | 412.
8 |
101.33 |
16″ | 686 | 403.86 | 41.1 | 20 | 76.2 | 106.4 | 495.3 | 469.9 | 146.16 |
18″ | 743 | 454.66 | 44.5 | 20 | 82.6 | 117.3 | 546.1 | 533.4 | 178.32 |
20″ | 813 | 505.46 | 44.5 | 24 | 88.9 | 127 | 609.6 | 584.2 | 226.83 |
24″ | 940 | 607.06 | 50.8 | 24 | 101.6 | 139.7 | 717.6 | 692.2 | 322.58 |
ASME B16.5 Threaded Flange Class 900LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 121 | 19.85 | 23 | 4 | 22.4 | 31.3 | 38.1 | 34.9 | 1.77 |
3/4″ | 130 | 25.25 | 23 | 4 | 25.4 | 35.1 | 44.5 | 42.9 | 2.34 |
1″ | 149 | 31.63 | 26 | 4 | 28.4 | 41.1 | 52.3 | 50.8 | 3.44 |
1-1/4″ | 159 | 40.43 | 26 | 4 | 28.4 | 41.1 | 63.5 | 63.5 | 3.95 |
1-1/2″ | 178 | 46.53 | 29 | 4 | 31.8 | 44.5 | 69.9 | 73 | 5.46 |
2″ | 216 | 58.53 | 26 | 8 | 38.1 | 57.2 | 104.6 | 92.1 | 9.97 |
2-1/2″ | 244 | 70.46 | 29 | 8 | 41.1 | 63.5 | 124 | 104.8 | 13.8 |
3″ | 241 | 86.36 | 26 | 8 | 38.1 | 53.8 | 127 | 127 | 11.8 |
4″ | 292 | 111.76 | 32 | 8 | 44.5 | 69.9 | 158.8 | 157.2 | 20.19 |
5″ | 349 | 138.76 | 35 | 8 | 50.8 | 79.2 | 190.5 | 185.7 | 32.63 |
6″ | 381 | 165.76 | 32 | 12 | 55.6 | 85.9 | 235 | 215.9 | 42.06 |
8″ | 470 | 216.56 | 39 | 12 | 63.5 | 101.6 | 298.5 | 269.9 | 71.91 |
10″ | 546 | 270.46 | 39 | 16 | 69.9 | 108 | 368.3 | 323.8 | 102.39 |
12″ | 610 | 321.26 | 39 | 20 | 79.2 | 117.3 | 419.1 | 381 | 135.1 |
14″ | 641 | 353.06 | 42 | 20 | 85.9 | 130 | 450.9 | 412.8 | 156.08 |
16″ | 705 | 403.86 | 45 | 20 | 88.9 | 133.4 | 508 | 46
9.9 |
189.14 |
18″ | 787 | 454.66 | 51 | 20 | 101.6 | 152.4 | 565.2 | 533.4 | 264.26 |
20″ | 857 | 505.46 | 54 | 20 | 108 | 158.8 | 622.3 | 584.2 | 324.72 |
24″ | 1041 | 607.06 | 67 | 20 | 139.7 | 203.2 | 749.3 | 692.2 | 618.5 |
ASME B16.5 Threaded Flange Class 1500LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 121 | 19.85 | 23 | 4 | 22.4 | 31.8 | 38.1 | 34.9 | 1.77 |
3/4″ | 130 | 25.25 | 23 | 4 | 25.4 | 35.1 | 44.5 | 42.9 | 2.34 |
1″ | 149 | 31.63 | 26 | 4 | 28.4 | 41.1 | 52.3 | 50.8 | 3.44 |
1-1/4″ | 159 | 40.43 | 26 | 4 | 28.4 | 41.1 | 63.5 | 63.5 | 3.95 |
1-1/2″ | 178 | 46.53 | 29 | 4 | 31.3 | 44.5 | 69.9 | 73 | 5.39 |
2″ | 216 | 58.53 | 26 | 8 | 38.1 | 57.2 | 104.6 | 92.1 | 9.97 |
2-1/2″ | 244 | 70.46 | 29 | 8 | 41.1 | 63.5 | 124 | 104.3 | 13.79 |
3″ | 267 | 86.36 | 32 | 8 | 47.3 | 73.2 | 133.4 | 127 | 18.22 |
4″ | 311 | 111.76 | 35 | 8 | 53.8 | 90.4 | 162.1 | 157.2 | 28.28 |
5″ | 375 | 138.76 | 42 | 8 | 73.2 | 104.6 | 196.9 | 185.7 | 52.78 |
6″ | 394 | 165.76 | 39 | 12 | 82.6 | 119.1 | 228.6 | 215.9 | 62.09 |
8″ | 483 | 216.56 | 45 | 12 | 91.9 | 142.7 | 292.1 | 269.9 | 104.89 |
10″ | 584 | 270.46 | 51 | 12 | 108 | 158.8 | 368.3 | 323.8 | 178.42 |
12″ | 673 | 321.26 | 54 | 16 | 124 | 180.8 | 450.9 | 381 | 268.39 |
14″ | 749 | 353.06 | 61 | 16 | 133.4 | – | 495.3 | 412.8 | – |
16″ | 826 | 403.86 | 67 | 16 | 146.1 | – | 552.5 | 469.9 | – |
18″ | 914 | 454.66 | 74 | 16 | 162.1 | – | 596.9 | 533.4 | – |
20″ | 984 | 505.46 | 80 | 16 | 177.8 | – | 641.4 | 584.2 | – |
24″ | 1168 | 607.06 | 93 | 16 | 203.2 | – | 762 | 692.2 | – |
ASME B16.5 Threaded Flange Class 2500LBS Dimensions
|
|||||||||
NPS | A | B | I | Holes | C | D | F | G | Weight |
1/2″ | 133 | 19.85 | 23 | 4 | 30.2 | 39.6 | 42.9 | 34.9 | 2.94 |
3/4″ | 140 | 25.25 | 23 | 4 | 31.8 | 42.9 | 50.8 | 42.9 | 3.48 |
1″ | 159 | 31.63 | 26 | 4 | 35.1 | 47.8 | 57.2 | 50.8 | 4.91 |
1-1/4″ | 184 | 40.43 | 29 | 4 | 38.1 | 52.3 | 73.2 | 63.5 | 7.2 |
1-1/2″ | 203 | 46.53 | 32 | 4 | 44.5 | 60.5 | 79.2 | 73 | 10.12 |
2″ | 235 | 58.53 | 29 | 8 | 50.8 | 69.9 | 95.3 | 92.1 | 14.98 |
2-1/2″ | 267 | 70.46 | 32 | 8 | 57.2 | 79.2 | 114.3 | 104.8 | 21.84 |
3″ | 305 | 86.36 | 35 | 8 | 66.5 | 91.9 | 133.4 | 127 | 33.02 |
4″ | 356 | 111.76 | 42 | 8 | 76.8 | 108 | 165.1 | 157.2 | 50.73 |
5″ | 419 | 138.76 | 48 | 8 | 91.5 | 130 | 203.2 | 185.7 | 83.61 |
6″ | 483 | 165.76 | 54 | 8 | 108 | 152.4 | 235 | 215.9 | 129.85 |
8″ | 552 | 216.56 | 54 | 12 | 127 | 177.8 | 304.8 | 269.9 | 189.89 |
10″ | 673 | 270.46 | 67 | 12 | 165.1 | 228.6 | 374.7 | 323.8 | 359.32 |
12″ | 762 | 321.26 | 74 | 12 | 184.2 | 254 | 441.5 | 381 | 508.69 |
