API 605/ASME B16.47 Series B Welding Neck Flanges Class 75 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 762 | 635 | 19.1 | 36 | 33.3 | 58.7 | 676.1 | 661.9 | 704.9 | 39.98 |
28″ | 813 | 685.8 | 19.1 | 40 | 33.3 | 62 | 726.9 | 712.7 | 755.7 | 43.86 |
30″ | 864 | 736.6 | 19.1 | 44 | 33.3 | 65 | 777.7 | 763.5 | 806.5 | 47.8 |
32″ | 941 | 787.4 | 19.1 | 48 | 35.1 | 69.9 | 828.5 | 814.3 | 857.3 | 64.09 |
34″ | 965 | 838.2 | 19.1 | 52 | 35.1 | 73.2 | 879.3 | 865.1 | 908.1 | 58.17 |
36″ | 1034 | 889 | 22.4 | 40 | 36.6 | 85.9 | 935 | 915.9 | 965.2 | 77.33 |
38″ | 1084 | 939.8 | 22.4 | 40 | 38.1 | 88.9 | 985.8 | 966.7 | 1016 | 84.5 |
40″ | 1135 | 990.6 | 22.4 | 44 | 38.1 | 91.9 | 1036.6 | 1017.5 | 1066.8 | 90.04 |
42″ | 1186 | 1041.4 | 22.4 | 48 | 39.6 | 95.3 | 1087.4 | 1068.3 | 1117.6 | 97.97 |
44″ | 1251 | 1092.2 | 25.4 | 36 | 42.9 | 104.6 | 1140 | 1119.1 | 1174.8 | 122.25 |
46″ | 1302 | 1143 | 25.4 | 40 | 44.5 | 108 | 1190.8 | 1169.9 | 1225.6 | 131.9 |
48″ | 1353 | 1193.8 | 25.4 | 44 | 46 | 111.3 | 1241.6 | 1220.7 | 1276.4 | 141.7 |
50″ | 1403 | 1244.6 | 25.4 | 44 | 47.8 | 115.8 | 1293.9 | 1271.5 | 1327.2 | 153.84 |
52″ | 1457 | 1295.4 | 25.4 | 48 | 47.8 | 120.7 | 1344.7 | 1322.3 | 1378 | 165.07 |
54″ | 1508 | 1346.2 | 25.4 | 48 | 49.3 | 125.5 | 1397 | 1373.1 | 1428.8 | 178.82 |
56″ | 1575 | 1397 | 28.4 | 40 | 50.8 | 134.9 | 1450.8 | 1423.9 | 1485.9 | 212.51 |
58″ | 1626 | 1447.8 | 28.4 | 44 | 52.3 | 138.2 td> | 1501.6 | 1474.7 | 1536.7 | 225.48 |
60″ | 1676 | 1498.6 | 28.4 | 44 | 55.6 | 144.5 | 1552.4 | 1525.5 | 1587.5 | 245.57 |
API 605/ASME B16.47 Series B Welding Neck Flanges Class 125 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 870 | 640.96 | 35 | 24 | 50.8 | 127 | 723.9 | 660 | 131.11 | |
28″ | 927 | 691.96 | 35 | 28 | 52.4 | 128.6 | 781.1 | 711 | 148.39 | |
30″ | 984 | 742.96 | 35 | 28 | 54 | 130 | 831.9 | 762 | 166.12 | |
32″ | 1061 | 793.96 | 41 | 28 | 57.2 | 133.4 | 889 | 813 | 202.17 | |
34″ | 1111 | 844.96 | 41 | 32 | 58.7 | 134.9 | 939.8 | 864 | 215.59 | |
36″ | 1169 | 894.96 | 41 | 32 | 60.3 | 136.5 | 997 | 914 | 242.91 | |
38″ | 1238 | 945.96 | 41 | 32 | 60.3 | 136.5 | 1060.5 | 965 | 278.58 | |
40″ | 1289 | 996.96 | 41 | 36 | 63.5 | 139.7 | 1111.3 | 1016 | 302.23 | |
42″ | 1346 | 1047.96 | 41 | 36 | 66.7 | 142.9 | 1168.4 | 1067 | 339.48 | |
44″ | 1404 | 1098.96 | 41 | 40 | 66.7 | 142.9 | 1219.2 | 1118 | 360.51 | |
46″ | 1454 | 1148.96 | 41 | 40 | 68.3 | 144.5 | 1270 | 1168 | 383.96 | |
48″ | 1511 | 1199.96 | 41 | 44 | 69.9 | 146.1 | 1327.2 | 1219 | 416.49 | |
50″ | 1569 | 1250.96 | 48 | 44 | 69.9 | 146.1 | 1378 | 1270 | 431.18 | |
52″ | 1626 | 1301.96 | 48 | 44 | 73 | 149.2 | 1435.1 | 1321 | 477.19 | |
54″ | 1683 | 1352.96 | 48 | 44 | 76.2 | 152.4 | 1492.3 | 1372 | 526.73 | |
60″ | 1854 | 1504.96 | 48 | 52 | 79.4 | 155.6 | 1657.4 | 1524 | 639.98 | |
66″ | 2032 | 1656.96 | 48 | 52 | 85.7 | 161.9 | 1816.1 | 1676 | 810.14 | |
72″ | 2197 | 1809.96 | 48 | 60 | 88.9 | 165.1 | 1993.9 | 1829 | 951.69 | |
84″ | 2534 | 2114.96 | 54 | 64 | 98.4 | 174.6 | 2298.7 | 2134 | 1274.95 | |
96″ | 2877 | 2418.96 | 61 | 68 | 108 | 184.2 | 2609.9 | 2438 | 1690.54 |
API 605/ASME B16.47 Series B Welding Neck Flanges Class 150 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 786 | 635 | 22.4 | 36 | 41.1 | 88.9 | 684.3 | 661.9 | 711.2 | 63.56 |
28″ | 837 | 685.8 | 22.4 | 40 | 44.5 | 95.3 | 735.1 | 712.7 | 762 | 73.5 |
30″ | 887 | 736.6 | 22.4 | 44 | 44.5 | 100.1 | 787.4 | 763.5 | 812.8 | 80.05 |
32″ | 941 | 787.4 | 22.4 | 48 | 46 | 108 | 839.7 | 814.3 | 863.6 | 91.76 |
34″ | 1005 | 838.2 | 25.4 | 40 | 49.3 | 110.2 | 892 | 865.1 | 920.8 | 110.27 |
36″ | 1057 | 889 | 25.4 | 44 | 52.3 | 117.3 | 944.6 | 915.9 | 971.6 | 124.91 |
38″ | 1124 | 939.8 | 28.4 | 40 | 53.8 | 124 | 997 | 968.2 | 1022.4 | 149.17 |
40″ | 1175 | 990.6 | 28.4 | 44 | 55.6 | 128.5 | 1049.3 | 1019 | 1079.5 | 162.58 |
42″ | 1226 | 1041.4 | 28.4 | 48 | 58.7 | 133.4 | 1101.9 | 1069.8 | 1130.3 | 179.18 |
44″ | 1276 | 1092.2 | 31.8 | 52 | 60.5 | 136.7 | 1152.7 | 1120.6 | 1181.1 | 187.51 |
46″ | 1341 | 1143 | 31.8 | 40 | 62 | 144.5 | 1205 | 1171.4 | 1234.9 | 223.84 |
48″ | 1392 | 1193.8 | 31.8 | 44 | 65 | 149.4 | 1257.3 | 1222.2 | 1289.1 | 243.46 |
50″ | 1443 | 1244.6 | 31.8 | 48 | 68.3 | 153.9 | 1308.1 | 1273 | 1339.9 | 263.22 |
52″ | 1494 | 1295.4 | 31.8 | 52 | 69.9 | 157.2 | 1360.4 | 1323.8 | 1390.7 | 279.95 |
54″ | 1549 | 1346.2 | 31.8 | 56 | 71.4 | 162.1 | 1412.7 | 1374.6 | 1441.5 | 303.62 |
56″ | 1600 | 1397 | 31.8 | 60 | 73.2 | 166.6 | 1465.3 | 1425.4 | 1492.3 | 323.64 |
58″ | 1675 | 1447.8 | 35.1 | 48 | 74.7 | 174.8 | 1516.1 | 1476.2 | 1543.1 | 383.77 |
60″ | 1726 | 1498.6 | 35.1 | 52 | 76.2 | 179.3 | 1570 | 1527 | 1600.2 | 407.55 |
API 605/ASME B16.47 Series B Welding Neck Flanges Class 300 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 867 | 635 | 35.1 | 32 | 88.9 | 144.5 | 701.5 | 665.2 | 736.6 | 189.56 |
28″ | 921 | 685.8 | 35.1 | 36 | 88.9 | 149.4 | 755.7 | 716 | 787.4 | 207.56 |
30″ | 991 | 736.6 | 38.1 | 36 | 93.7 | 158 | 812.8 | 768.4 | 844.6 | 254.27 |
32″ | 1054 | 787.4 | 41.1 | 32 | 103.1 | 168.1 | 863.6 | 819.2 | 901.7 | 310.53 |
34″ | 1108 | 838.2 | 41.1 | 36 | 103.1 | 173 | 917.4 | 870 | 952.5 | 333.98 |
36″ | 1172 | 889 | 44.5 | 32 | 103.1 | 180.8 | 965.2 | 920.8 | 1009.7 | 374.99 |
38″ | 1222 | 939.8 | 44.5 | 36 | 111.3 | 192 | 1016 | 971.6 | 1060.5 | 51.95 |
40″ | 1273 | 990.6 | 44.5 | 40 | 115.8 | 198.4 | 1066.8 | 1022.4 | 1114.6 | 55.97 |
42″ | 1334 | 1041.4 | 47.8 | 36 | 119.1 | 204.7 | 1117.6 | 1074.7 | 1168.4 | 508.46 |
44″ | 1384 | 1092.2 | 47.8 | 40 | 127 | 214.4 | 1173.2 | 1125.5 | 1219.2 | 69.03 |
46″ | 1461 | 1143 | 50.8 | 36 | 128.5 | 222.3 | 1128.9 | 1176.3 | 1270 | 12.74 |
48″ | 1511 | 1193.8 | 50.8 | 40 | 128.5 | 223.8 | 1277.9 | 1227.1 | 1327.2 | 678.19 |
50″ | 1562 | 1244.6 | 50.8 | 44 | 138.2 | 235 | 1330.5 | 1277.9 | 1378 | 90.66 |
52″ | 1613 | 1295.4 | 50.8 | 48 | 142.7 | 242.8 | 1382.8 | 1328.7 | 1428.8 | 98.74 |
54″ | 1673 | 1346.2 | 50.8 | 48 | 136.7 | 239.8 | 1435.1 | 1379.5 | 1479.6 | 829.33 |
56″ | 1765 | 1397 | 60.5 | 36 | 153.9 | 268.2 | 1493.8 | 1422.4 | 1536.7 | 122.93 |
58″ | 1827 | 1447.8 | 60.5 | 40 | 153.9 | 274.6 | 1547.9 | 1481.1 | 1593.9 | 147.04 |
60″ | 1878 | 1498.6 | 60.5 | 40 | 150.9 | 271.5 | 1598.7 | 1531.9 | 1651 | 1201.14 |
API 605/ASME B16.47 Series B Welding Neck Flanges Class 400 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 850.9 | 635 | 38.1 | 28 | 88.9 | 149.35 | 688.85 | 660.4 | 711.2 | 165.95 |
28″ | 914.4 | 685.8 | 41.15 | 24 | 95.25 | 158.9 | 739.65 | 711.2 | 762 | 204.49 |
30″ | 971.55 | 736.6 | 41.15 | 28 | 101.6 | 169.93 | 793.75 | 762 | 819.15 | 239.2 |
32″ | 1035.1 | 787.4 | 44.45 | 28 | 107.95 | 179.32 | 844.55 | 812.8 | 873.25 | 283.06 |
34″ | 1085.9 | 838.2 | 44.45 | 32 | 111.25 | 187.45 | 898.65 | 863 | 927.1 | 307.92 |
36″ | 1155.7 | 889 | 47.75 | 28 | 119.13 | 200.15 | 952.5 | 914.4 | 980.95 | 381.98 |
API 605/ASME B16.47 Series B Welding Neck Flanges Class 600 LBS Dimensions | ||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 889 | 635 | 44.45 | 28 | 111.25 | 180.85 | 698.5 | 660.4 | 726.95 | 244.55 |
28″ | 952.5 | 685.8 | 47.75 | 28 | 115.82 | 190.5 | 752.35 | 711.2 | 784.35 | 287.49 |
30″ | 1022.4 | 736.6 | 50.8 | 28 | 125.48 | 204.72 | 806.45 | 762 | 841.25 | 358.02 |
32″ | 1085.9 | 787.4 | 53.85 | 28 | 130.05 | 215.9 | 860.55 | 812.8 | 895.35 | 414.01 |
34″ | 1162.1 | 838.2 | 60.45 | 24 | 141.22 | 233.43 | 914.4 | 863.6 | 952.5 | 523.71 |
36″ | 1212.9 | 889 | 60.45 | 28 | 146.05 | 242.82 | 968.25 | 914.4 | 1009.7 | 564.36 |
API 60
5/ASME B16.47 Series B Welding Neck Flanges Class 900 LBS Dimensions |
||||||||||
NPS | A | B | I | Holes | C | D | F | E | G | Weight |
26″ | 1022.4 | 635 | 66.55 | 20 | 134.87 | 258.83 | 742.95 | 660.4 | 762 | 513.64 |
28″ | 1104.9 | 685.8 | 73.15 | 20 | 147.57 | 276.35 | 797.05 | 711.2 | 819.15 | 646.22 |
30″ | 1181.1 | 736.6 | 79.25 | 20 | 155.45 | 289.05 | 850.9 | 762 | 876.3 | 765.72 |
32″ | 1238.3 | 787.4 | 79.25 | 20 | 160.27 | 303.28 | 908.05 | 812.8 | 927.1 | 863.06 |
34″ | 1314.5 | 838.2 | 85.85 | 20 | 171.45 | 319.02 | 962.15 | 863.6 | 990.6 | 1023.53 |
36″ | 1346.2 | 889 | 79.25 | 24 | 172.97 | 325.37 | 1016 | 914.4 | 1028.7 | 1038.21 |

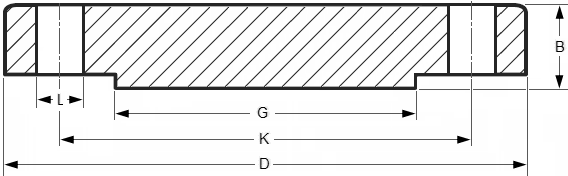

ASME B16.47 Series B Blind Flange Class 75 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 762 | 19.1 | 36 | 33.27 | 704.9 | 116.41 |
28″ | 813 | 19.1 | 40 | 33.27 | 755.7 | 132.59 |
30″ | 864 | 19.1 | 44 | 33.27 | 806.5 | 149.83 |
32″ | 941 | 19.1 | 48 | 36.58 | 857.3 | 195.75 |
34″ | 965 | 19.1 | 52 | 38.1 | 908.1 | 214.29 |
36″ | 1034 | 22.4 | 40 | 42.42 | 965.2 | 274.37 |
38″ | 1084 | 22.4 | 40 | 44.45 | 1016 | 316.52 |
40″ | 1135 | 22.4 | 44 | 44.45 | 1066.8 | 346.99 |
42″ | 1186 | 22.4 | 48 | 47.75 | 1117.6 | 407.01 |
44″ | 1251 | 25.4 | 36 | 49.28 | 1174.8 | 468.44 |
46″ | 1302 | 25.4 | 40 | 50.8 | 1225.6 | 522.86 |
48″ | 1353 | 25.4 | 44 | 53.85 | 1276.4 | 598.35 |
ASME B16.47 Series B Blind Flange Class 125 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 870 | 35 | 24 | 50.8 | 227.85 | |
28″ | 927 | 35 | 28 | 52.4 | 266.54 | |
30″ | 984 | 35 | 28 | 54 | 310.94 | |
32″ | 1061 | 41 | 28 | 57.2 | 380.4 | |
34″ | 1111 | 41 | 32 | 58.7 | 427.24 | |
36″ | 1169 | 41 | 32 | 50.3 | 407.11 | |
38″ | 1238 | 41 | 32 | 60.3 | 549.8 | |
40″ | 1289 | 41 | 36 | 63.5 | 626.8 | |
42″ | 1346 | 41 | 36 | 66.7 | 720.15 | |
44″ | 1404 | 41 | 40 | 66.7 | 782.97 | |
46″ | 1454 | 41 | 40 | 68.3 | 861.93 | |
48″ | 1511 | 41 | 44 | 69.9 | 952.06 | |
50″ | 1569 | 48 | 44 | 69.9 | 1017.23 | |
52″ | 1626 | 48 | 44 | 73 | 1144.31 | |
54″ | 1683 | 48 | 44 | 76.2 | 1283.08 | |
60″ | 1854 | 48 | 52 | 79.4 | 1624.02 | |
66″ | 2032 | 48 | 52 | 85.7 | 2118.36 | |
72″ | 2197 | 48 | 60 | 88.9 | 2569.81 | |
84″ | 2534 | 54 | 64 | 98.4 | 3782.32 | |
96″ | 2877 | 61 | 68 | 108 | 5342.93 |
ASME B16.47 Series B Blind Flange Class 300 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 785.88 | 22.35 | 36 | 44.45 | 711.2 | 163.4 |
28″ | 836.68 | 22.35 | 40 | 47.75 | 762 | 199.22 |
30″ | 887.48 | 22.35 | 44 | 50.8 | 812.8 | 238.76 |
32″ | 941.32 | 22.35 | 48 | 53.85 | 863.6 | 285.08 |
34″ | 1004.8 | 25.4 | 40 | 57.15 | 920.8 | 345.31 |
36″ | 1057.1 | 25.4 | 44 | 58.67 | 971.6 | 392.51 |
38″ | 1124 | 28.45 | 40 | 63.5 | 1022.4 | 480.11 |
40″ | 1174.8 | 28.45 | 44 | 66.55 | 1079.5 | 549.91 |
42″ | 1225.6 | 28.45 | 48 | 68.33 | 1130.3 | 614.6 |
44″ | 1276.4 | 28.45 | 52 | 71.37 | 1181.1 | 696.47 |
46″ | 1341.4 | 31.75 | 40 | 74.68 | 1234.9 | 807.6 |
48″ | 1392.2 | 31.75 | 44 | 77.72 | 1289.1 | 905.2 |
26″ | 867 | 34.9 | 32 | 88.9 | 736.6 | 388.96 |
28″ | 921 | 34.9 | 36 | 88.9 | 787.4 | 439.07 |
30″ | 991 | 38.1 | 36 | 93.7 | 844.6 | 535.02 |
32″ | 1054 | 41.3 | 32 | 103.2 | 901.7 | 669.71 |
34″ | 1108 | 41.3 | 36 | 103.2 | 952.5 | 739.5 |
36″ | 1172 | 44.4 | 32 | 103.2 | 1009.6 | 830.96 |
38″ | 1222.2 | 44.4 | 36 | 111.3 | 1060.5 | 973.4 |
40″ | 1273 | 44.4 | 40 | 115.8 | 1114.6 | 1097.73 |
42″ | 1334 | 47.6 | 36 | 119.1 | 1168.4 | 1243.54 |
44″ | 1384.3 | 47.6 | 40 | 127 | 1219.2 | 1426.15 |
46″ | 1460.5 | 50.8 | 36 | 130.1 | 1270 | 1632.23 |
48″ | 1511 | 50.8 | 40 | 135 | 1327.2 | 1810.26 |
ASME B16.47 Series B Blind Flange Class 400 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 850.9 | 38.1 | 28 | 88.9 | 711.2 | 367.61 |
28″ | 914.4 | 41.15 | 24 | 95.25 | 762 | 458.74 |
30″ | 971.55 | 41.15 | 28 | 101.6 | 819.15 | 552.74 |
32″ | 1035.1 | 44.45 | 28 | 107.95 | 873.25 | 666.35 |
34″ | 1085.9 | 44.45 | 32 | 111.25 | 927.1 | 755.39 |
36″ | 1155.7 | 47.75 | 28 | 119.13 | 980.95 | 922 |
ASME B16.47 Series B Blind Flange Class 600 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 889 | 44.45 | 28 | 111.25 | 726.95 | 496.05 |
28″ | 952.5 | 47.75 | 28 | 115.82 | 784.35 | 593.33 |
30″ | 1022.4 | 50.8 | 28 | 127 | 841.25 | 751.51 |
32″ | 1085.9 | 53.85 | 28 | 134.87 | 895.35 | 901.4 |
34″ | 1162.1 | 60.45 | 24 | 144.27 | 952.5 | 1109.29 |
36″ | 1212.9 | 60.45 | 28 | 150.88 | 1009.7 | 1259.63 |
ASME B16.47 Series B Blind Flange Class 900 LBS Dimensions | ||||||
NPS | D | L | Holes | B | G | Weight |
26″ | 1022.4 | 66.55 | 20 | 153.92 | 762 | 893.18 |
28″ | 1104.9 | 73.15 | 20 | 166.62 | 819.15 | 1126.83 |
30″ | 1181.1 | 79.25 | 20 | 176.02 | 876.3 | 1357.94 |
32″ | 1238.3 | 79.25 | 20 | 185.67 | 927.1 | 1590.05 |
34″ | 1314.5 | 85.85 | 20 | 195.07 | 990.6 | 1877.38 |
36″ | 1346.2 | 79.25 | 24 | 201.68 | 1028.7 | 2042.37 |
